SOK 30.72kWh 48V Server Rack LiFePO4 Battery System — 6× SK48V100N + 6-Slot Cabinet

Serious Energy Storage. One Complete SOK Rack System.

Build a high-capacity 48V battery bank around genuine SOK equipment with this complete 30.72kWh server-rack battery package.

This package combines six SOK SK48V100N 51.2V 100Ah LiFePO4 batteries with the matching SOK 6-slot battery cabinet, creating a clean, expandable foundation for larger solar, off-grid, backup-power, residential energy-storage, cabin, shop, and mobile-power applications.

Each SK48V100N provides 5.12kWh of rated energy. Six batteries provide 30.72kWh nominal energy capacity when properly configured as a compatible 51.2V parallel battery bank.

Elevation UpScales, Inc. is an Authorized SOK Energy Dealer, supplying genuine SOK equipment with dealer-supported fulfillment and product support.

Package Includes

• 6 × SOK SK48V100N 51.2V 100Ah server-rack LiFePO4 batteries
• 1 × SOK SK48V100NBC-6 6-slot battery cabinet
• Integrated cabinet busbar
• Cabinet wheels
• Factory battery-management and communication hardware

Battery Bank Specifications

• Nominal System Voltage: 51.2V
• Capacity Per Battery: 100Ah
• Energy Per Battery: 5.12kWh
• Quantity: 6 batteries
• Combined Nominal Energy: 30.72kWh
• Combined Capacity: 600Ah when configured as a compatible 51.2V parallel bank
• Battery Chemistry: LiFePO4 — Lithium Iron Phosphate
• Battery Model: SK48V100N
• Cabinet Model: SK48V100NBC-6

SK48V100N Features

Built-In Smart BMS: Each battery includes SOK's integrated Smart Battery Management System for battery protection and system management.

Integrated Battery Heater: Each SK48V100N includes a built-in 100W heater for low-temperature operating conditions.

CANBus + RS485 Communications: Integrated CANBus and RS485 communications support many compatible inverter and energy-management platforms. Always verify inverter compatibility and communication configuration before installation.

Pre-Charge Circuit: SOK incorporates a pre-charge circuit designed to help protect the BMS from high inrush current when connecting the battery bank to compatible equipment.

Rack-Mountable Design: Purpose-built for server-rack-style installations for cleaner, more serviceable battery-bank organization.

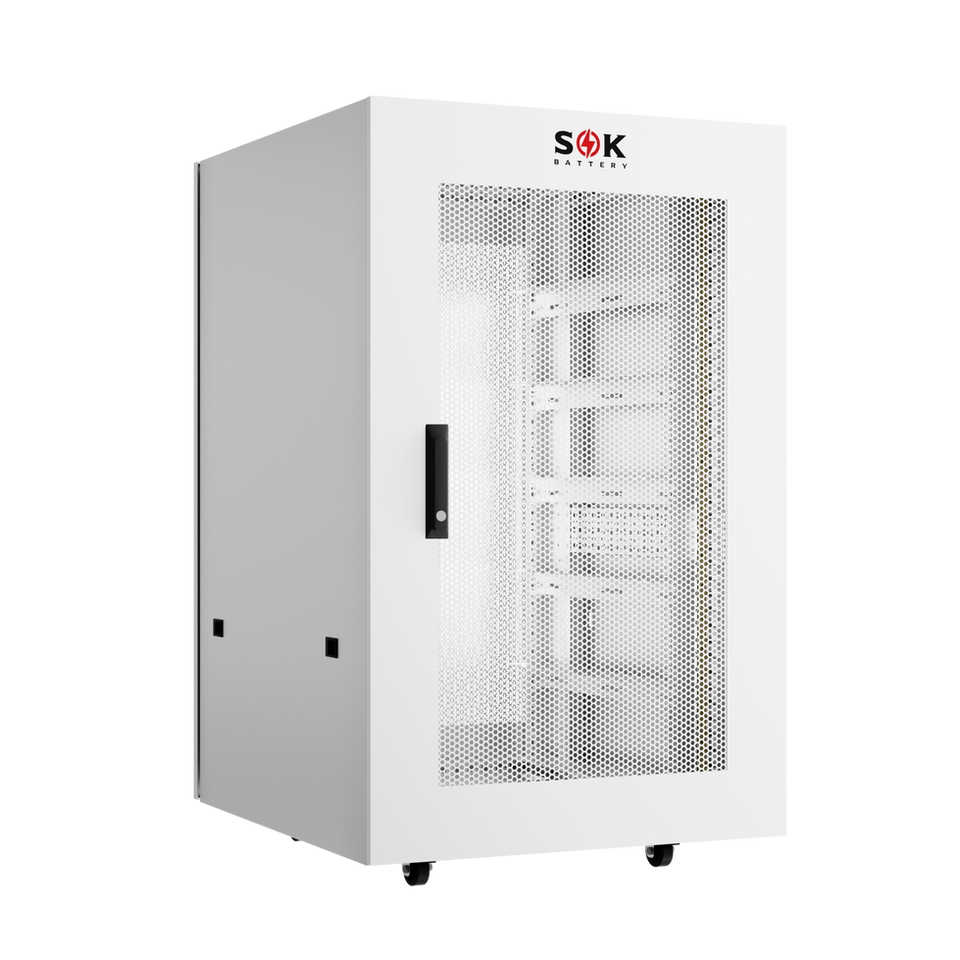

SOK 6-Slot Battery Cabinet

The included SK48V100NBC-6 cabinet is designed for six SOK SK48V100N batteries and includes an integrated busbar and wheels. This package fills all six battery positions for a complete 30.72kWh rack battery bank.

Battery Dimensions & Weight

• Approximate Battery Net Weight: 95.9 lb / 43.5 kg each
• Approximate Packed Weight: 101.4 lb / 46 kg each
• Approximate Battery Shipping Carton: 54.2 × 52.2 × 19.7 cm

Cabinet Shipping Specifications

• Approximate Packed Dimensions: 28 × 35 × 49 in / 71 × 89 × 124 cm
• Approximate Packed Weight: 250 lb / 113.5 kg

Built for Larger Power Systems

Potential applications include off-grid homes, residential solar storage, whole-property backup systems, cabins and remote properties, workshops and garages, large RV or mobile-power builds, agricultural applications, commercial equipment backup, and solar + inverter systems.

Actual runtime and usable energy depend on system design, inverter efficiency, electrical loads, operating conditions, configuration, and programmed battery limits.

Cycle Life & Warranty

SOK states that the SK48V100N provides more than 6,000 cycles under its specified 80% depth-of-discharge and 0.5C test conditions.

SOK lists a 7-year limited warranty for the U.S. SK48V100N model. Warranty eligibility, installation requirements, operating limits, and claim procedures remain subject to SOK's current warranty terms.

Pre-Order & Supplier Fulfillment

This system is offered as a pre-order / supplier-fulfilled package. Checkout remains available so customers can reserve the system. Supplier availability is rechecked during fulfillment.

The batteries and cabinet are separate shipment pieces and may generate multiple tracking or freight references. Please allow time for supplier release, order processing, and multi-piece shipment coordination.

Shipping

Lower-48 United States only. Supplier-coordinated lithium freight is included in the listed price.

Because this package contains six large-format LiFePO4 batteries plus a battery cabinet, it is handled as a multi-piece lithium/freight shipment rather than a normal single-box parcel order.

The batteries and cabinet may ship separately from SOK's California fulfillment location and may generate multiple tracking or freight references.

Alaska and Hawaii are not included in the standard shipping arrangement for this product. Customers in Hawaii, Alaska, or other special-service areas should contact Elevation UpScales for a dedicated lithium freight review before ordering.

Important Installation Notice

This is high-capacity electrical energy-storage equipment. Battery banks, inverters, disconnects, overcurrent protection, conductors, grounding, communications, and related system components must be properly sized and configured for the application.

Professional installation by a qualified installer is recommended where appropriate. Inverter compatibility should be confirmed before installation.
