Olight OSIGHT SE — 2 MOA Dot + 32 MOA Circle Enclosed Red Dot Sight

Compact enclosed red dot optic with a selectable 2 MOA dot, 32 MOA circle, or circle-dot reticle, RMSc footprint, side-loading CR1620 battery, motion activation, and rugged 7075 aluminum housing.

Product Profile

The OSIGHT SE combines a fully enclosed emitter system with a compact, low-profile body. Its aspherical lens is designed for zero-distortion, parallax-free viewing, while the multi-reticle system lets the user switch between a 2 MOA dot, 32 MOA circle, or both. A side-loading battery tray allows the CR1620 battery to be replaced without removing the optic.

Key Features

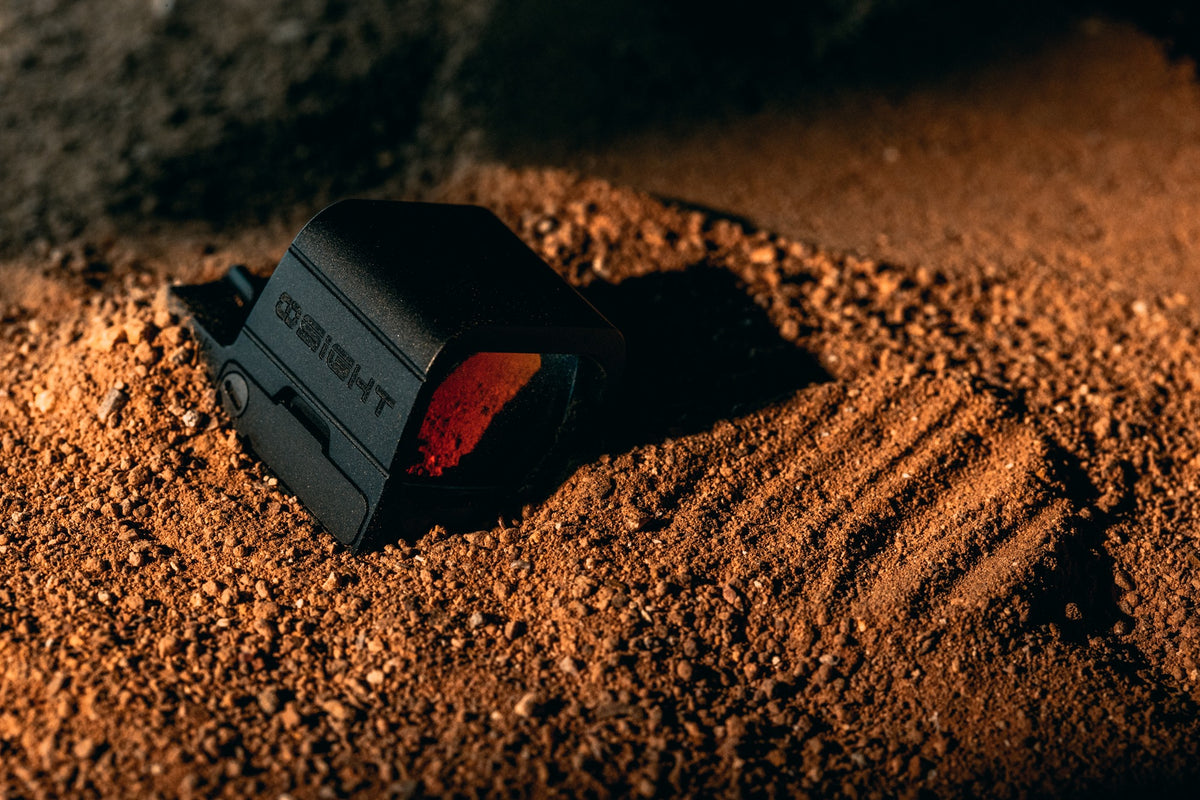

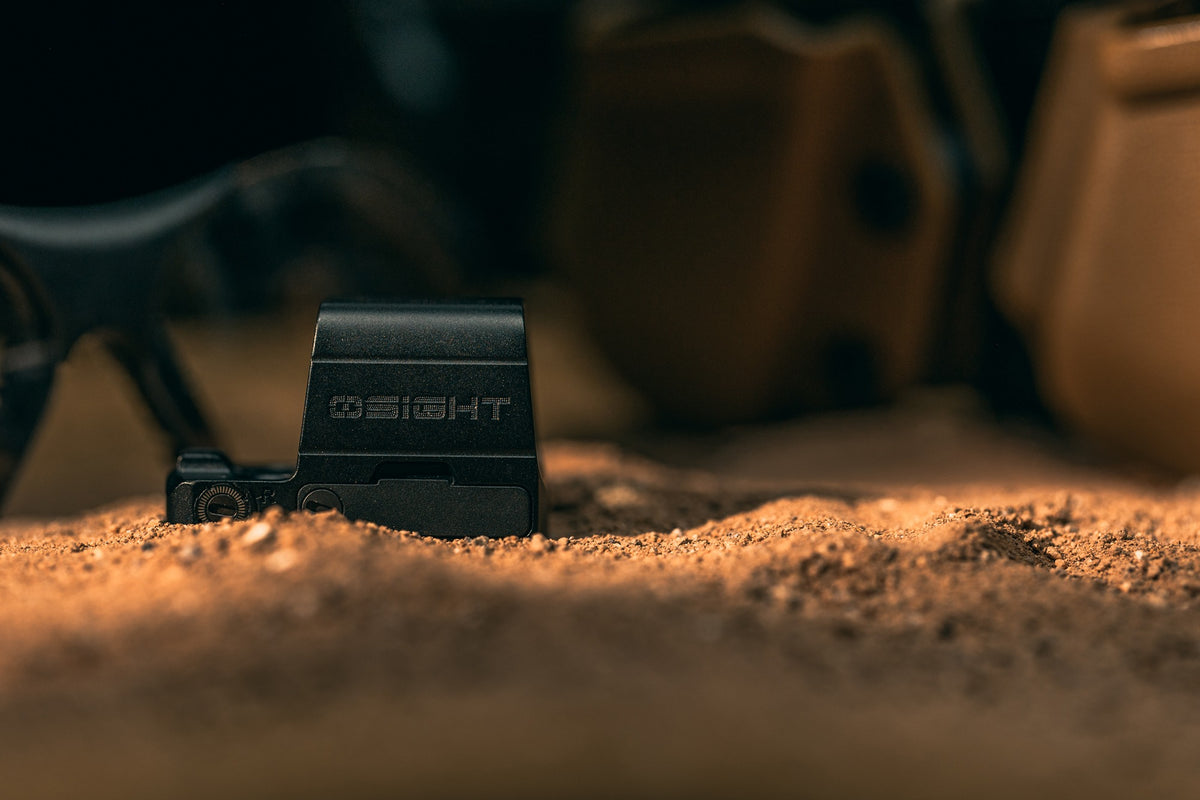

• Enclosed emitter: Fully sealed optical system for protection from environmental elements.

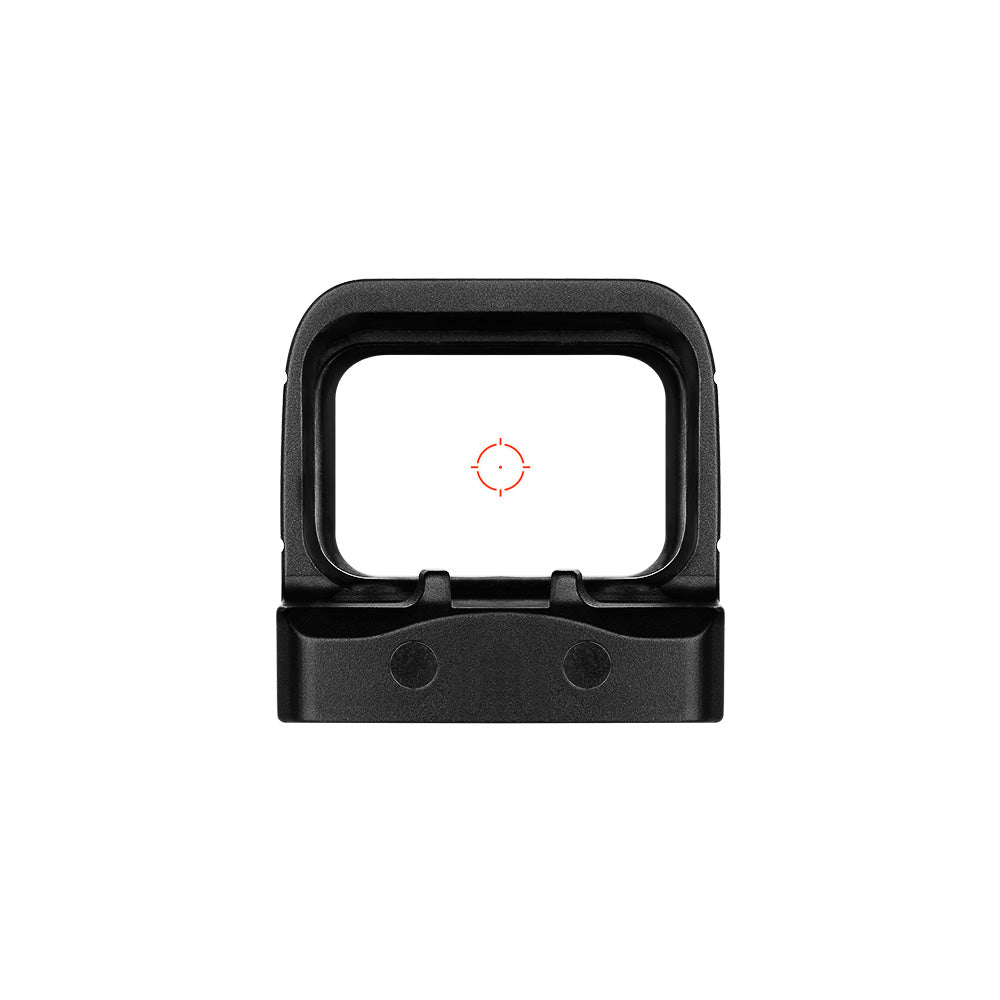

• Multi-reticle: Selectable 2 MOA dot, 32 MOA circle, or circle-dot.
• Aspherical lens: Zero-distortion, parallax-free optical design.
• RMSc footprint: Compact mounting footprint for compatible optics-ready slides.

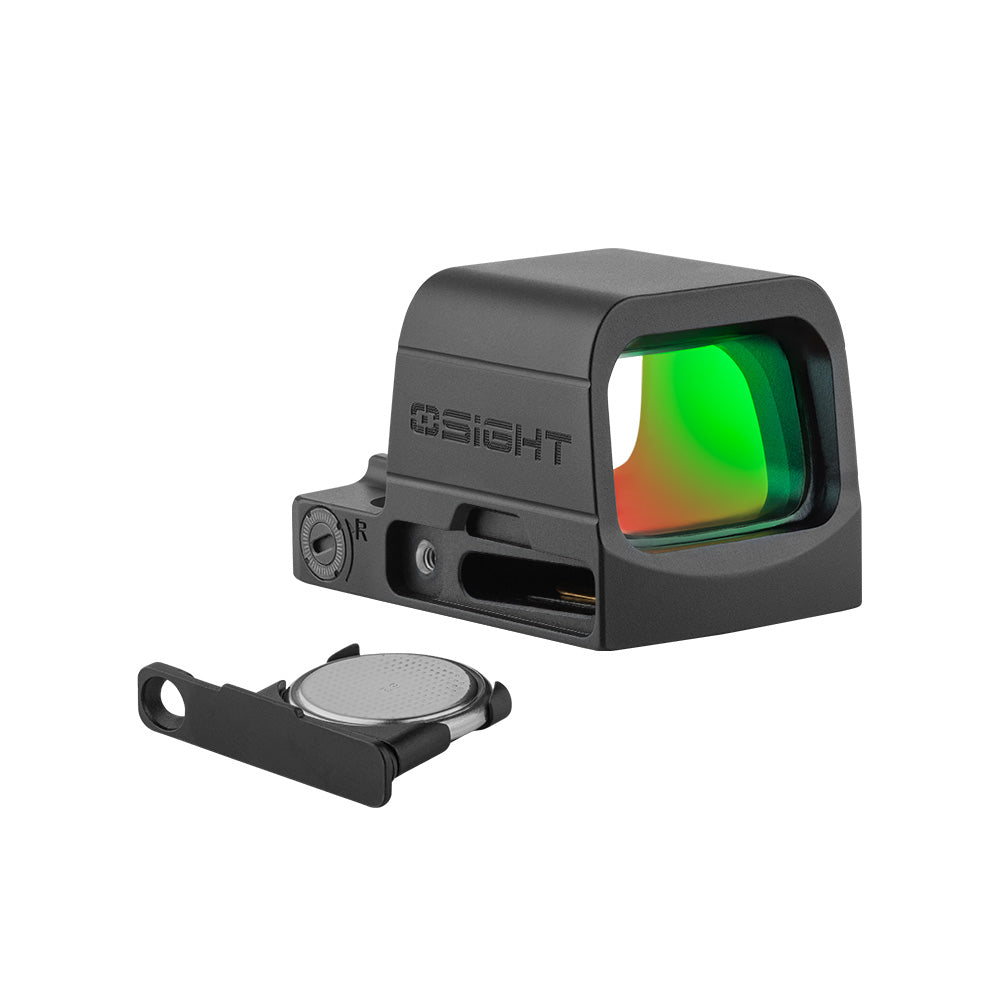

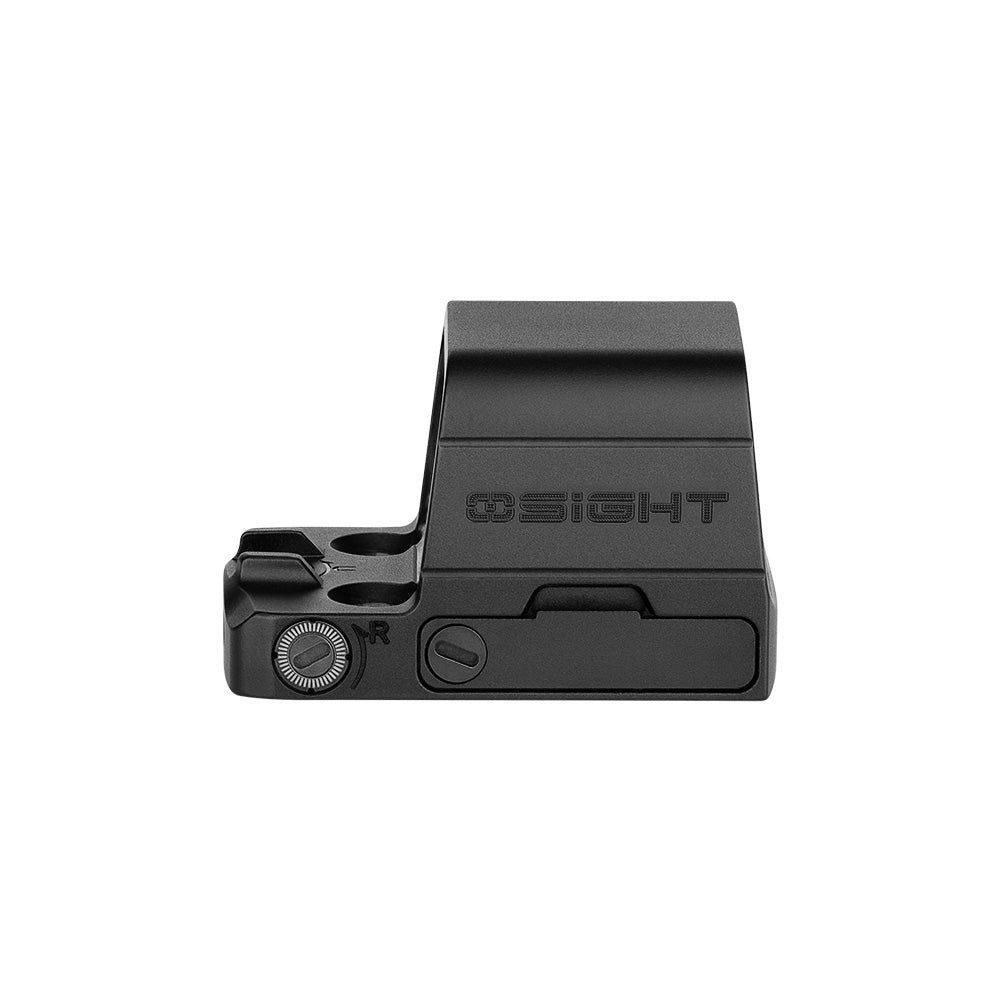

• Side-load battery: Replace the CR1620 without removing the optic.
• Motion sensor: Activates illumination with movement and powers down after 3 minutes of inactivity.
• 10 brightness settings: 8 daylight settings and 2 night-vision settings.
• Low-power indication: Visual warning when battery power is low.
• 7075 aluminum housing: CNC-machined aircraft-grade aluminum construction.

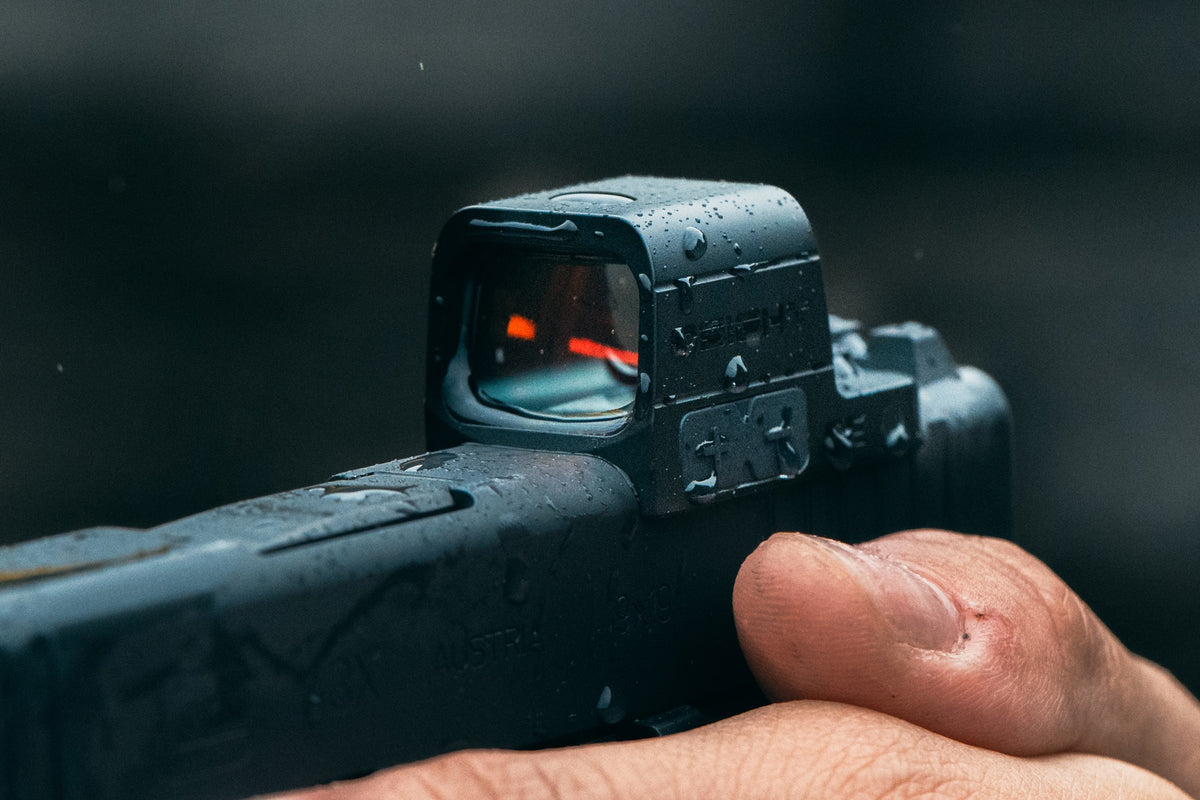

• IPX7: Water-resistant construction rated to the IPX7 standard.

Specifications

• Reticle: 2 MOA Dot + 32 MOA Circle
• Reticle color: Red
• Light wavelength: 650 nm
• Magnification: 1×
• Adjustment: 1 MOA per click
• Windage & elevation travel: ±35 MOA
• Maximum runtime: Up to 75,000 hours on Mode 3, dot only
• Battery: CR1620
• Brightness: 8 daylight + 2 night-vision settings
• Window: 0.83 × 0.55 in / 21 × 14 mm
• Eye relief: Unlimited
• Housing: 7075 aluminum
• Waterproof rating: IPX7
• Dimensions: 1.59 × 0.98 × 0.97 in / 40.4 × 25 × 24.7 mm
• Weight: 0.97 oz / 27.5 g
• UPC: 6978095650155
• SKU: OSIGHTSE

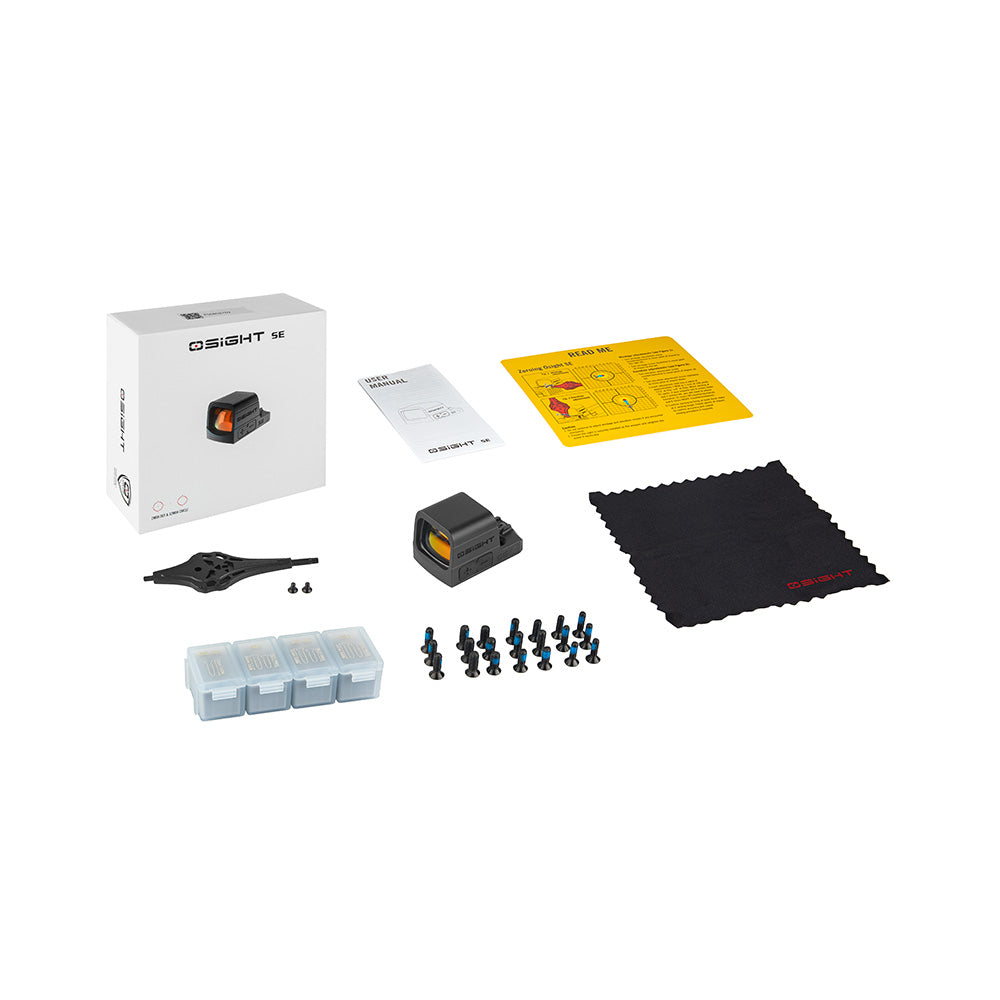

What's in the Box

• OSIGHT SE optic with CR1620 battery installed
• Adjustment tool
• READ ME card
• 3 × M3 × 10.5 mm screws
• 3 × M3 × 11.5 mm screws
• 3 × M4 × 9.4 mm screws
• 3 × M4 × 10.5 mm screws
• 3 × #6-32 × 0.433 in screws
• 3 × #6-40 × 0.374 in screws
• 3 × #6-40 × 0.449 in screws
• 2 × battery-compartment screws
• Screw box
• Cleaning cloth
• User manual

Installation Note

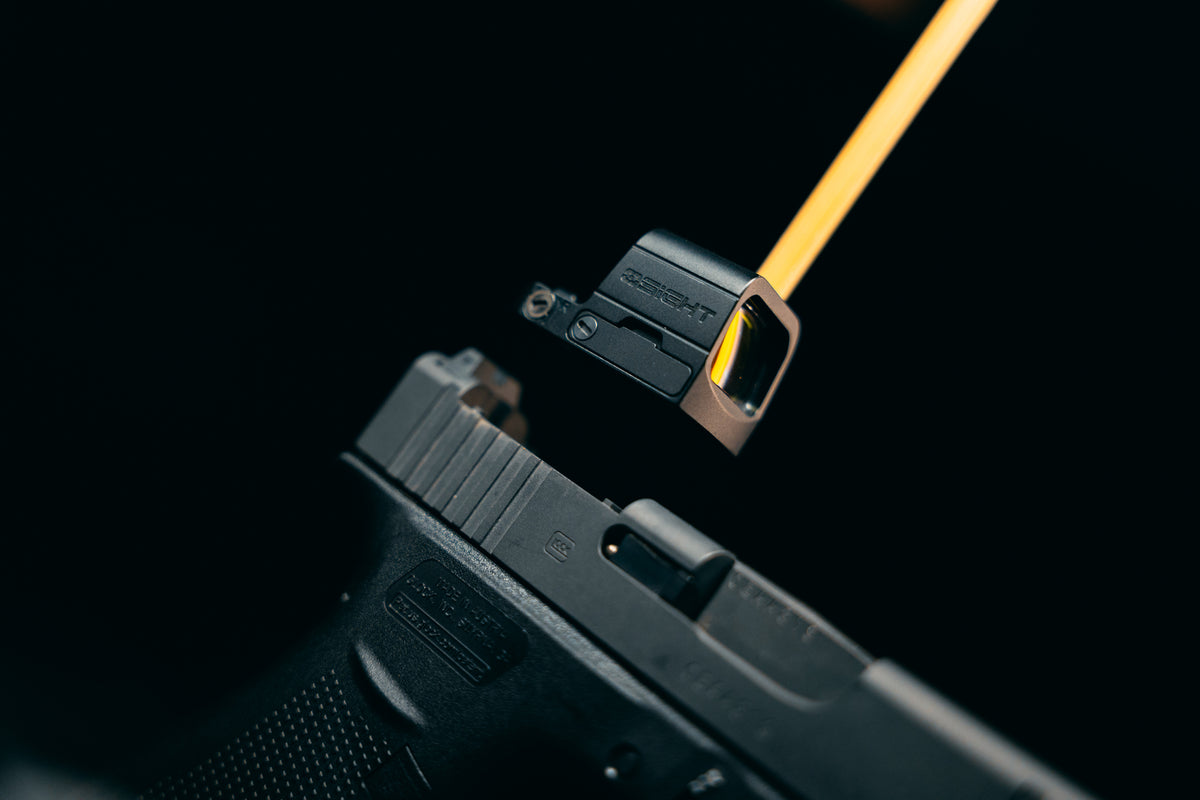

Olight specifies applying non-permanent medium/blue threadlocker to the included mounting screws and tightening each screw to 15–17 in-lb. If an adapter plate is required, follow the adapter-plate manufacturer's installation instructions.

Battery Safety

Warning: This product contains a button-cell battery. Keep new and used batteries out of reach of children. Seek immediate medical attention if a battery is suspected to have been swallowed or inserted into any part of the body.
